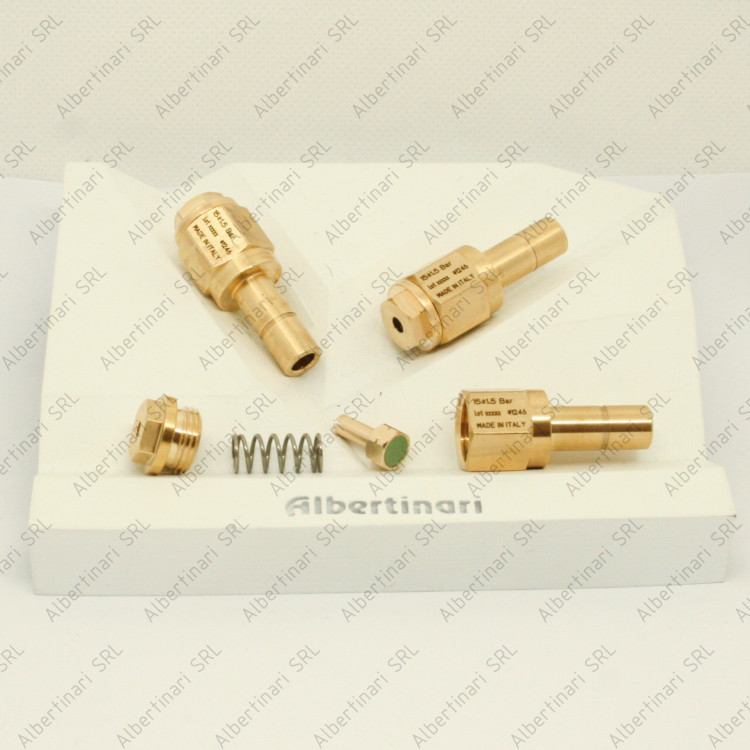

Safety valve 15 bar ± 1.5

1246

Technical details

  • PRESSURE : 15 bar ± 1.5
  • FITTING : attacco per tubo 8mm
  • BODY MATERIAL : CW510L
  • SEAL MATERIAL : Viton
  • FLUID PASSAGE SECTION MM2 : 0


Description: Valve with coupling for 8mm tube, 15 bar ± 1.5 opening
Suitable for: Home appliances, pressure vessels, oleodinamics and CO2
Minimum order quantity: 500
Disponibility in shop: On request
AQL=0,65 on precision of opening point
Respects rules: • RoHS European directive 2002/95/EC -2015/863/EC on use of certain hazardous substances.
• Reach regulation (EC 1907/2006 – 1272/2008) et enclosed XVIII 26 June 2009 and list SVHC up-to date at 19/12/2018.
Note: max temperature 90 °C
