VALVES CATALOGUE

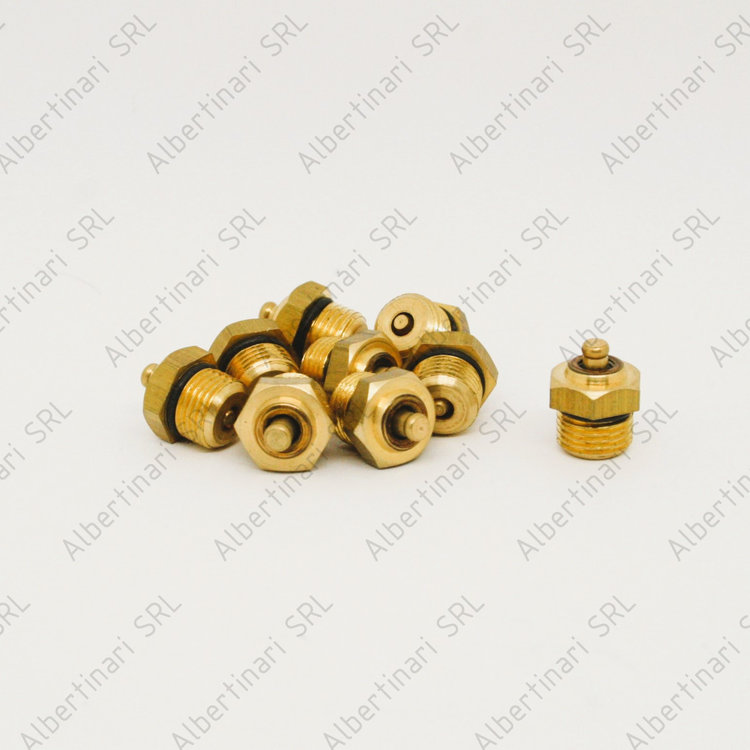

Safety valve with 1/8 Gas, Hex key 11, internal sealing in Silicon and external in NBR

4234

Technical details

  • PRESSURE : 5,0±0,5
  • FITTING : 1/8 Gas ISO228 cylindrical
  • BODY MATERIAL : CW614N
  • SEAL MATERIAL : Silicone
  • FLUID PASSAGE SECTION MM2 : 8.7

Download complete Data Sheet

Do you want to download the complete product data sheet in PDF format?

Fill out the form below to download product Datasheet. The data collected will be used to contact you if you need to receive more information about our products.

To help us avoid spam, please enter the result of this operation in the box below: =

I declare to be informed in accordance with current European legislation (EU Regulation 2016/679) as well as the Italian law (Legislative Decree No. 196/2003 and subsequent amendments) and to accept the privacy policy.



Description: Safety valve with 1/8 Gas, Hex key 11, internal sealing in silicon and external gasket in NBR
Minimum order quantity: 1500
Disponibility in shop: 2 Week from order
AQL=0,65 on precision of opening point
AQL=0,25 on sealing
AQL= 0,4 on threading

Respects rules:

• RoHS European directive 2002/95/EC -2015/863/EC on use of certain hazardous substances.
