VALVES CATALOGUE

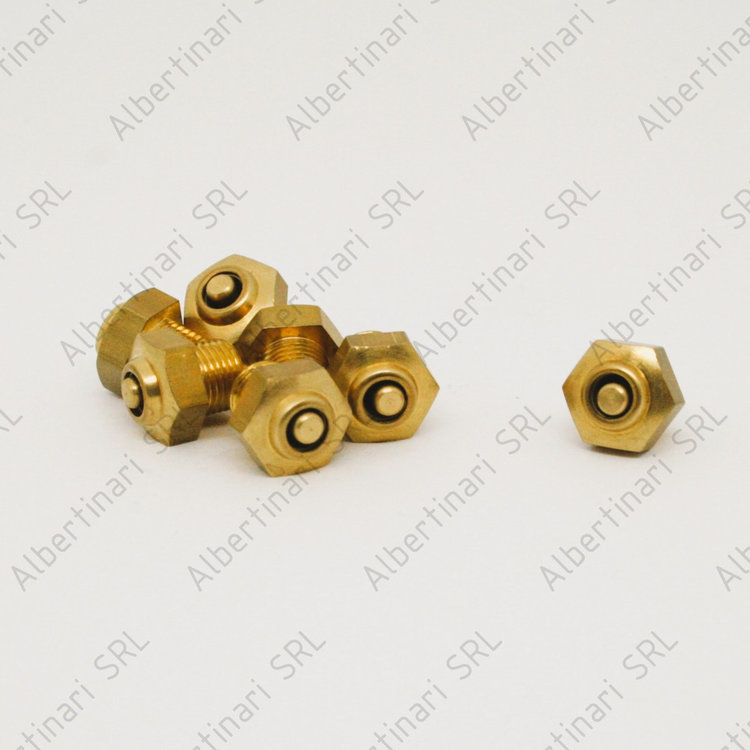

Safety valve with M8x0.75, key 11 pressure from 1.5 to 2.5, nitrilic rubber sealing

3265

Technical details

  • PRESSURE : 2,0±0,5
  • FITTING : cylindrical M8x0,75
  • BODY MATERIAL : CW614N
  • SEAL MATERIAL : NBR
  • FLUID PASSAGE SECTION MM2 : 5.6

Download complete Data Sheet

Do you want to download the complete product data sheet in PDF format?

Fill out the form below to download product Datasheet. The data collected will be used to contact you if you need to receive more information about our products.

To help us avoid spam, please enter the result of this operation in the box below: =

I declare to be informed in accordance with current European legislation (EU Regulation 2016/679) as well as the Italian law (Legislative Decree No. 196/2003 and subsequent amendments) and to accept the privacy policy.



Description: Safety valve with M8x0.75, key 11 pressure from 1.5 to 2.5, nitrilic rubber sealing
Suitable for: Motorcycle radiators and similar appliances.
Minimum order quantity: 1500
Disponibility in shop: On request
AQL=0,65 on precision of opening point
Respects rules: • RoHS European directive 2002/95/EC -2015/863/EC on use of certain hazardous substances.

Note: max temperature 90 °C
