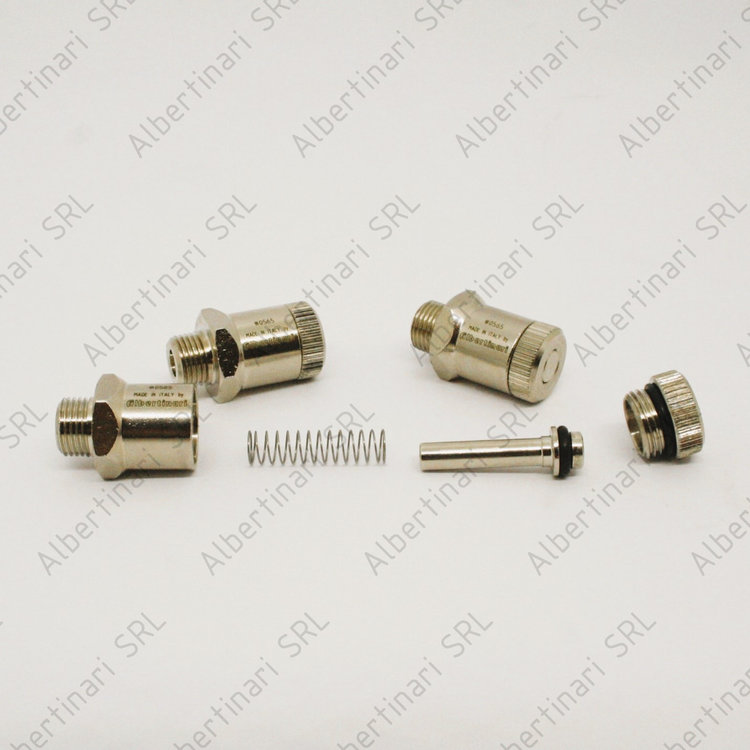

Vacuum / Negative pressure spring valve 1/8 Gas CW614N NBR

0565

Technical details

PRESSURE : -0,1±0,05
FITTING : 1/8 Gas ISO228 cylindrical
BODY MATERIAL : CW614N Nichel Plated
SEAL MATERIAL : NBR
FLUID PASSAGE SECTION MM2 : 26

Description: Vaacum / Negative pressure valve
Suitable for: Home appliances, pressure vessels, boiler for professional ironing
Minimum order quantity: 500
Disponibility in shop: On request
AQL=0,65 on precision of opening point
Respects rules: • RoHS European directive 2002/95/EC -2015/863/EC on use of certain hazardous substances.
• Reach regulation (EC 1907/2006 – 1272/2008) et enclosed XVIII 26 June 2009 and list SVHC up-to date at 19/12/2018.
Note:
