VALVES CATALOGUE

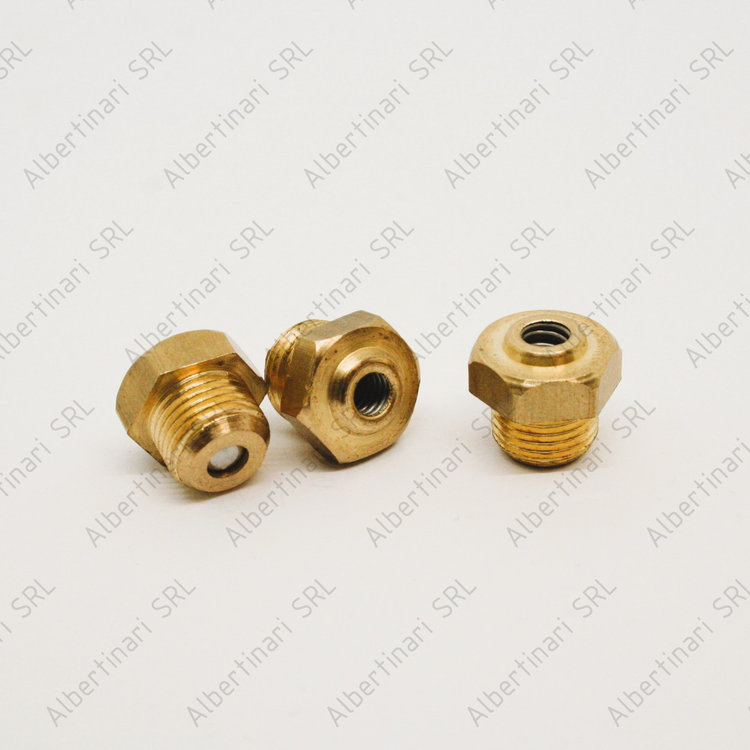

Safety valve with conical thread M10x1 and opening 3-4 bar and esternal Key 12

0315

Technical details

  • PRESSURE : 3,5±0,5
  • FITTING : 1/8 Gas ISO228 cylindrical
  • BODY MATERIAL : CW614N
  • SEAL MATERIAL : AISI 420C on Brass seat
  • FLUID PASSAGE SECTION MM2 : 4.1

Download complete Data Sheet

Do you want to download the complete product data sheet in PDF format?

Fill out the form below to download product Datasheet. The data collected will be used to contact you if you need to receive more information about our products.

To help us avoid spam, please enter the result of this operation in the box below: =

I declare to be informed in accordance with current European legislation (EU Regulation 2016/679) as well as the Italian law (Legislative Decree No. 196/2003 and subsequent amendments) and to accept the privacy policy.



Description: Safety valve with conical thread M10x1 and opening 3-4 bar and esternal Key 12
Suitable for: Lubrication systems, pneumatic systems, coffee makers, steam generators, fog generator, etc.
Minimum order quantity: 2500
Disponibility in shop: On request
AQL=1 on precision of opening point
Respects rules: • RoHS European directive 2002/95/EC -2015/863/EC on use of certain hazardous substances.

Note:
