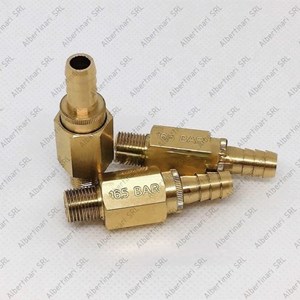

Limitation valve 1/8 Gas with hose connection for silicon tube I.D. 7

1554

Technical details

  • PRESSURE : 12,6±0,6
  • FITTING : 1/8 Gas ISO228 cylindrical
  • BODY MATERIAL : CW510L
  • SEAL MATERIAL : Silicone
  • FLUID PASSAGE SECTION MM2 : 4.7

Download complete Data Sheet

Do you want to download the complete product data sheet in PDF format?

Fill out the form below to download product Datasheet. The data collected will be used to contact you if you need to receive more information about our products.

To help us avoid spam, please enter the result of this operation in the box below: =

I declare to be informed in accordance with current European legislation (EU Regulation 2016/679) as well as the Italian law (Legislative Decree No. 196/2003 and subsequent amendments) and to accept the privacy policy.



Description: Limitation valve 1/8 Gas with hose silicon connection adjusted and tested 100%
Suitable for: Professional and domestic coffee machines, instant brewing, etc.
Minimum order quantity: 1000
Disponibility in shop: On request
AQL=0,4 on precision of opening point

AQL=0.15 on sealing

AQL=0.4 on threading


Respects rules:

• NSF/ANSI 372, DIN50930-0, DM174 of 06/04/04, U.S. Government Public Law 111-380 - maximum content of lead 0.2% in weight.
• RoHS European directive 2002/95/EC -2015/863/EC on use of certain hazardous substances.
• Reach regulation (EC 1907/2006 – 1272/2008) et enclosed XVIII 26 June 2009 and list SVHC up-to date at 19/12/2018.
• Once mounted as device on food appliances, comply MOCA rules, CE 1935/2004 , D.M. 174 del 06/04/2004
Note: 100% tested on pressure opening
